Brand Name : Easwon
Model Number : JC2413
Certification : CE
Place of Origin : China
MOQ : 1 set
Price : negotiated
Payment Terms : L/C, T/T
Supply Ability : 100 set per month
Delivery Time : 15 days
Packaging Details : wooden case
Model : JC2413
Total power : 5.5kw
Board thickness : 15-50mm
Drilling depth : 0-35mm
Feeding rate : 40mm/min
Processing line speed : 105m/min
Min. working width : 70mm
Delivery time : 15 days
Warranty : 1 year
Condition : new
JC2413 Woodworking CNC side hole drilling machine
1. This CNC side hole drilling machine is suitable for custom-made furniture sided ring equipment, used for horizontal drilling applications of various man-made panels, solid wood panels, and semi-solid wood panels.
2. It is an economical and simple processing equipment with easy operation and fast drilling speed.
Advantage:
Greatly improve the processing capacity and production efficiency by shortening the auxiliary working time. In addition, it reduces the number of traditional machine tools, saves the number to operators and reduces the floor area of the workshop.
1. Improve processing capacity and production efficiency.
2. Improve the wood yield.
3. Improve product quality and processing precision.
4. Expand the technological range and increase the product variety
Specification:
Model no | JC2413 | |
Motor power | kw | 2.2 x 2 |
Spindle motor | Air-cooled motor | |
Spindle speed | r/min | 24000 |
Total power | kw | 5.5 |
Effective travel of workbench | Mm | 2800 |
Empty line speed | m/min | 150 |
Processing line speed | m/min | 105 |
Air pressure | Mpa | 0.6-0.8 |
Board thickness | mm | 15-50 |
Drilling depth | mm | 0-35 |
Min. working width | mm | 70 |
Feeding rate | mm/min | 40 |
Overall dimension | mm | 3650x1200x1300 |
Weight | kg | 900 |

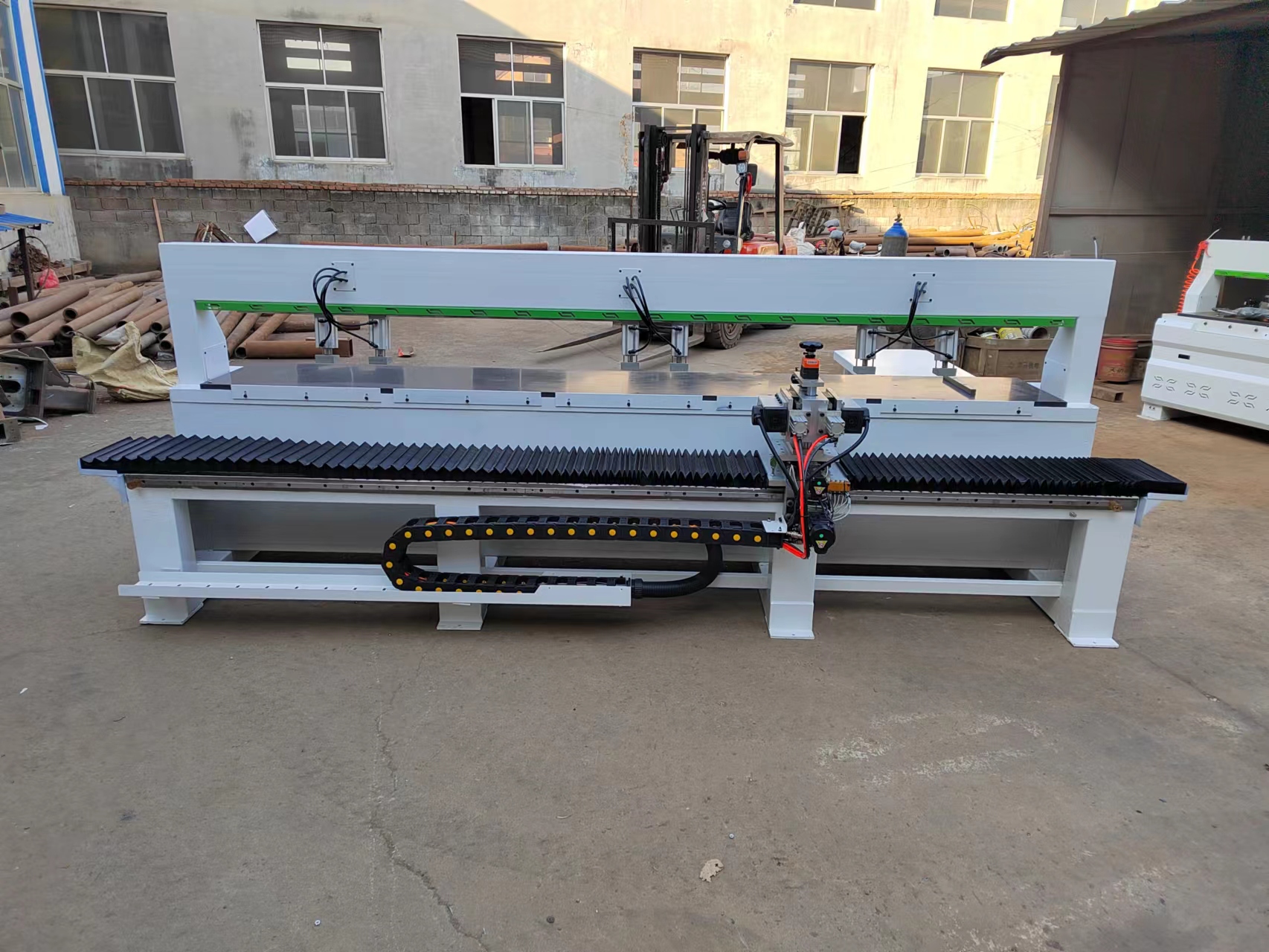

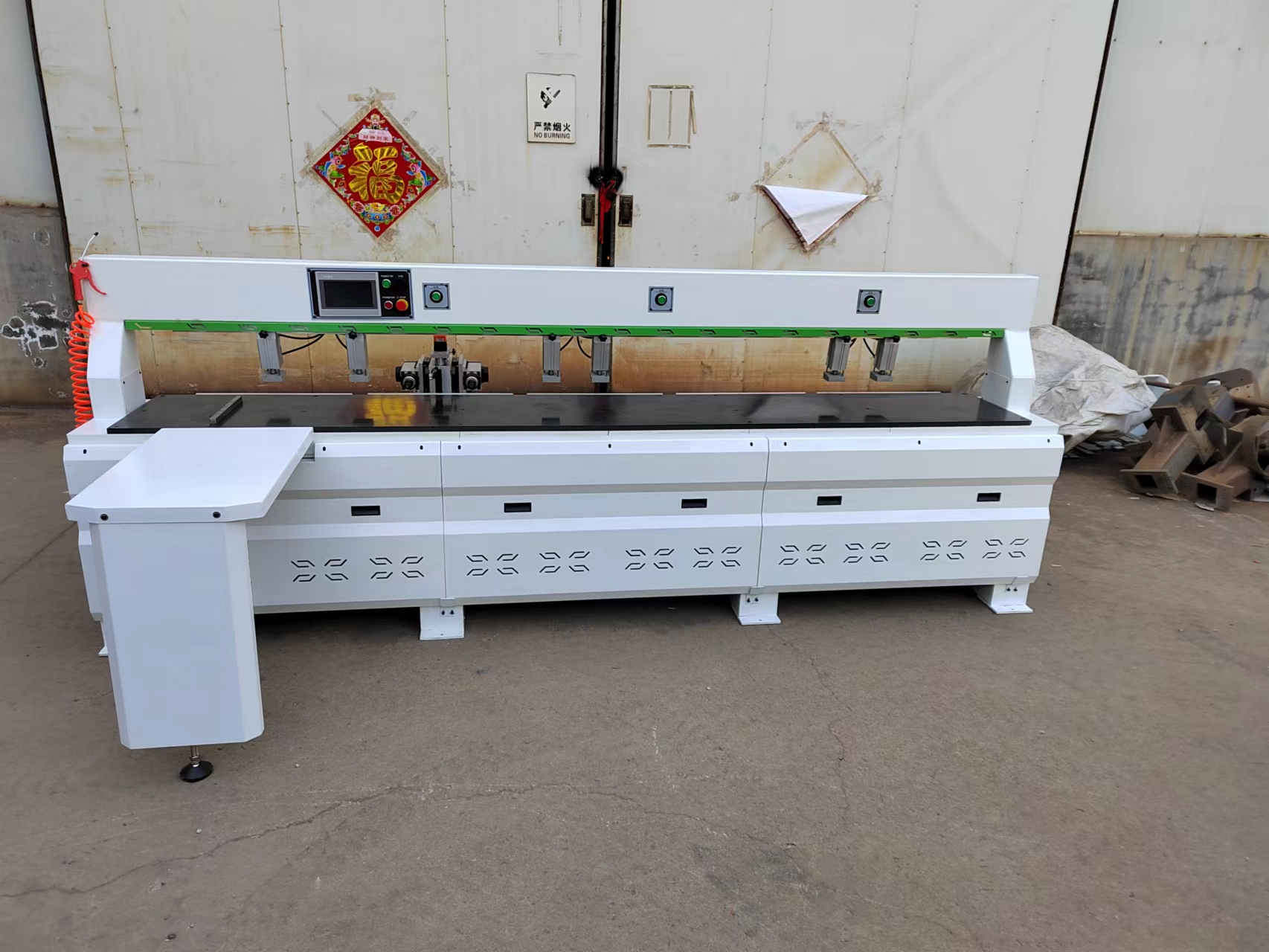

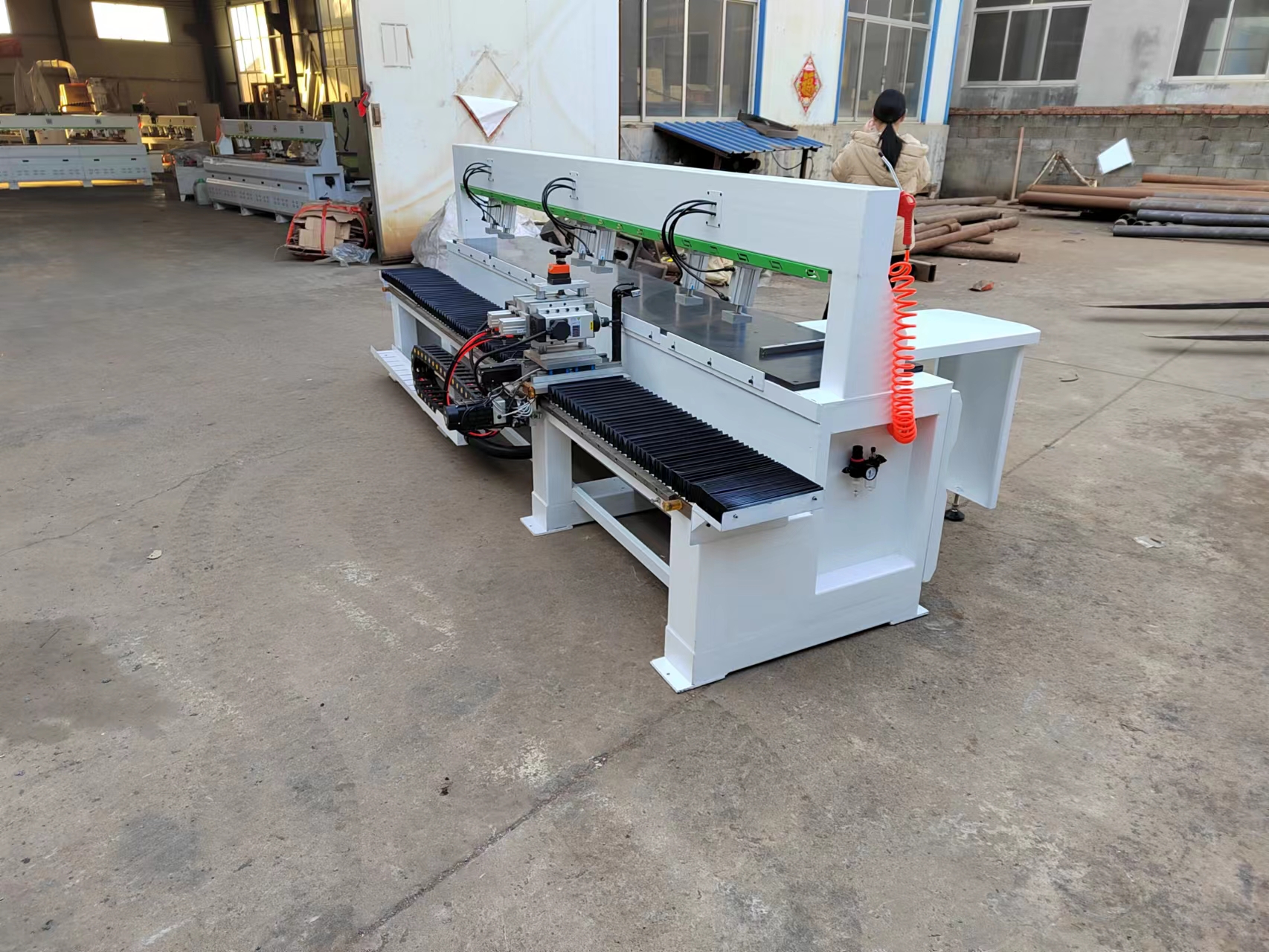

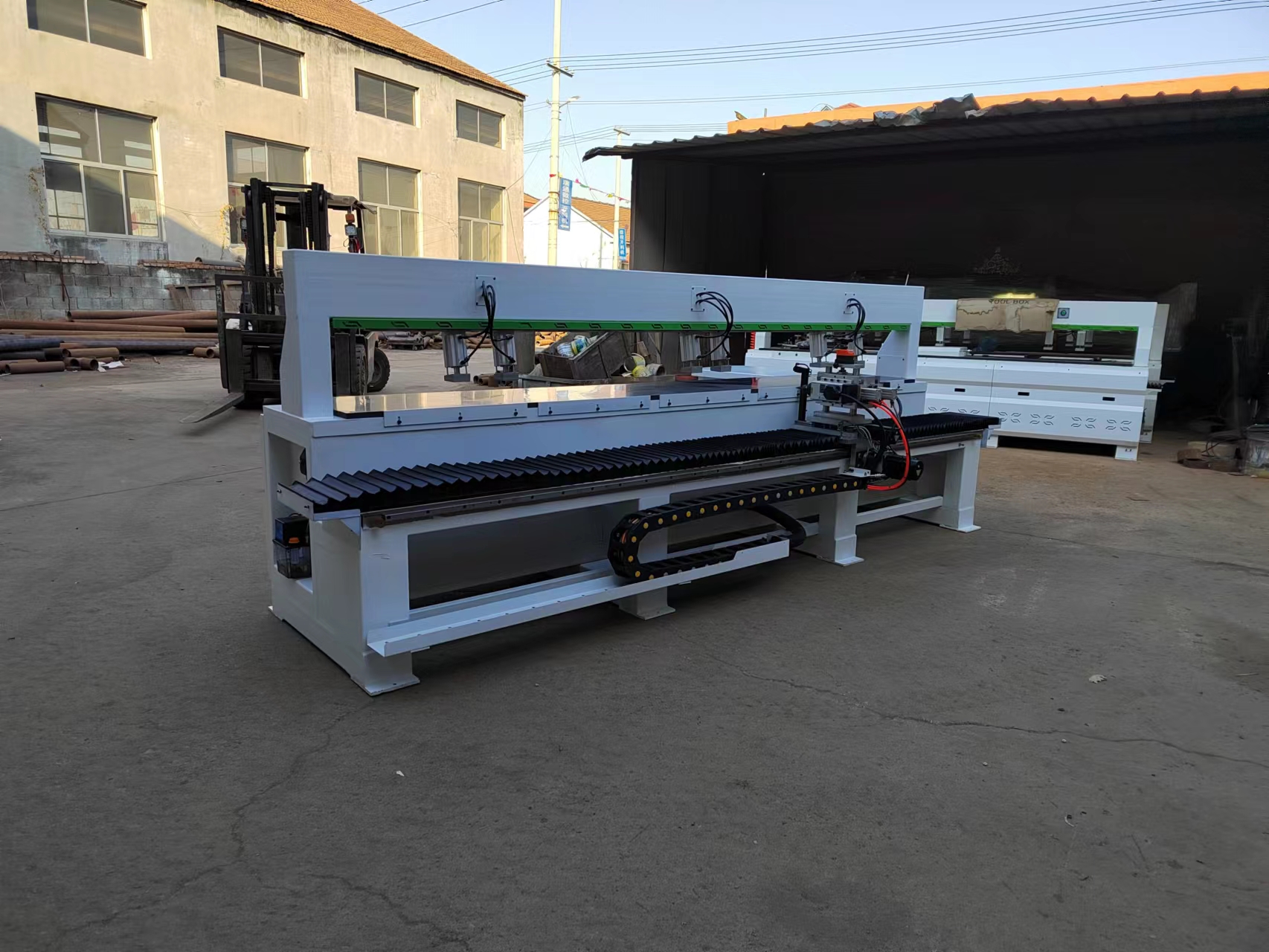

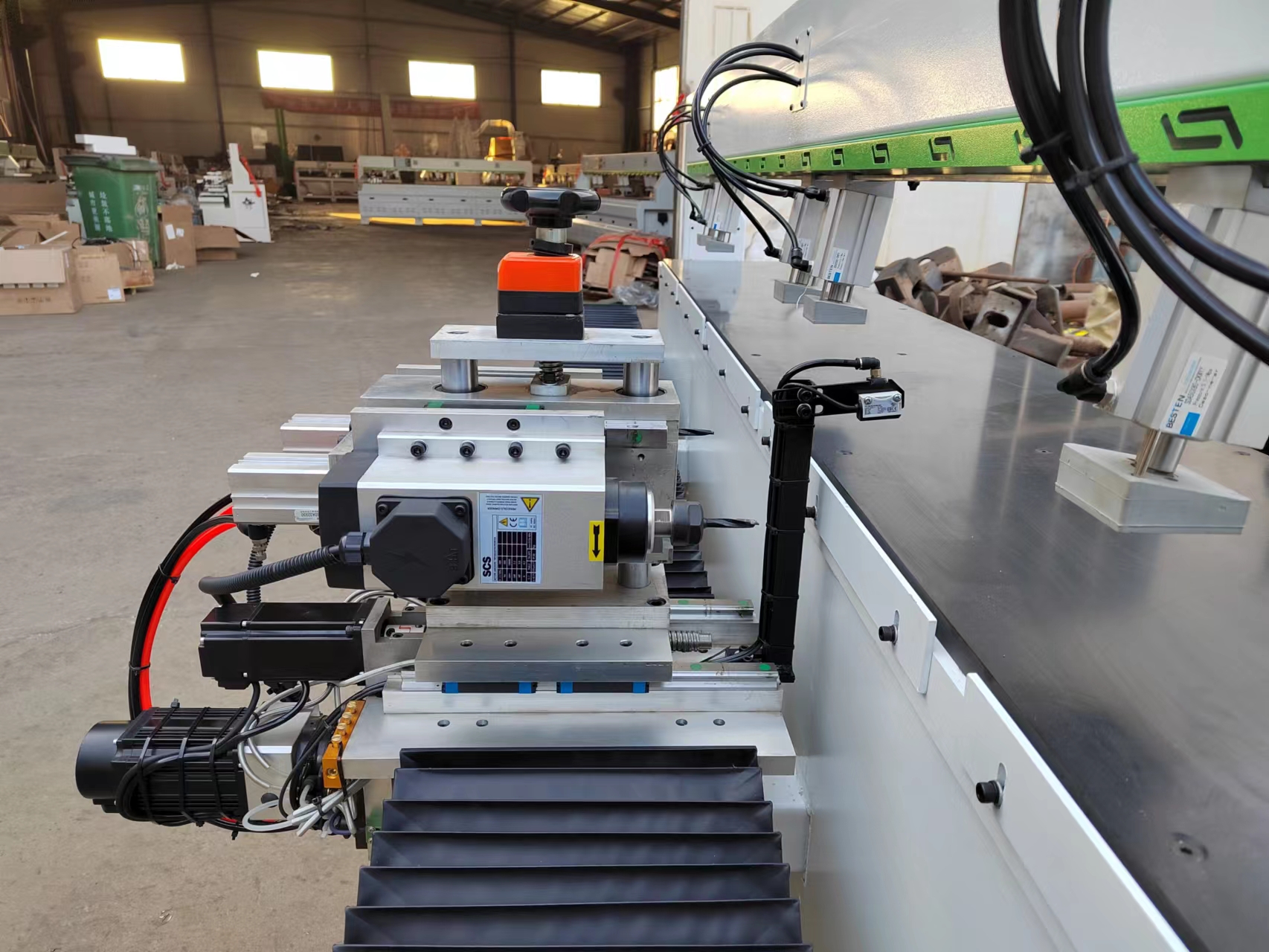

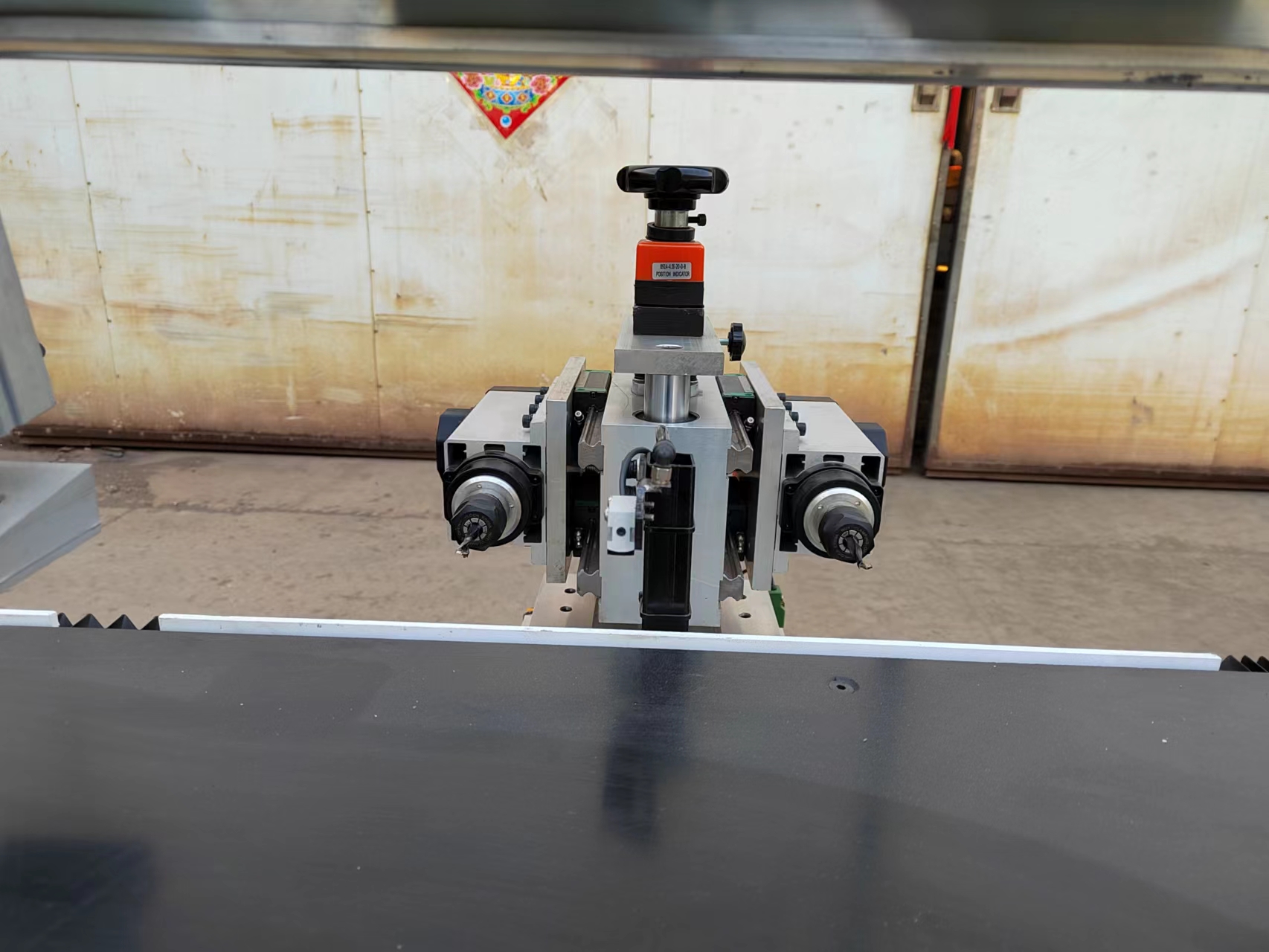

Machine details:
![]() | ![]() |
![]() | ![]() |
![]() | ![]() |
Package and shipping:
CNC side hole drilling machine is packed by plywood case, which is suitable for FCL and LCL shipping.
After sales services:
1. Warranty: 1 year
2. Lifetime upgrades and consulting services
3. 24-hour servic hot line for consulting and solving the problems
4. Provide product design and solution within 24 hours
5. Supply operational manual and maintance manual in English.
![]() |
